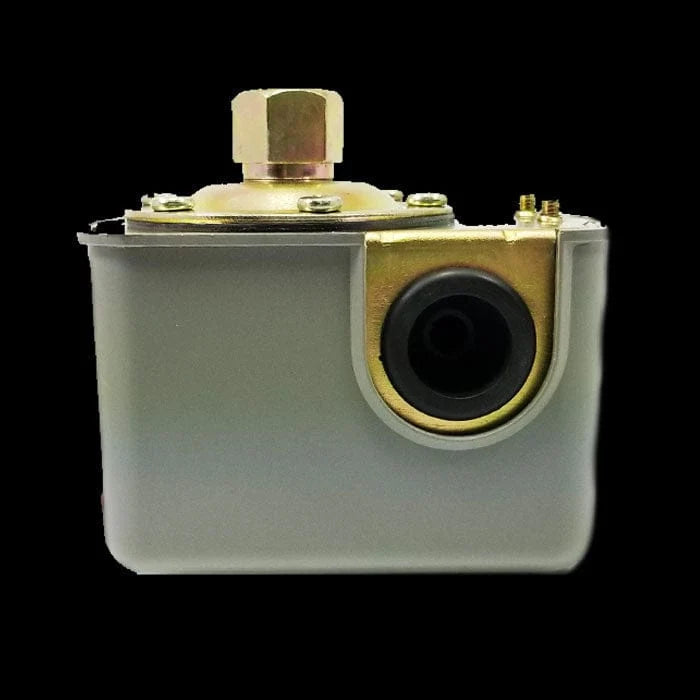

PRESSURE SWITCH FEMALE SQ. ‘D’ - 0061808

Description:

Fitted Phase:1 Phase Or 3 Phase (15 Or 230 Volt / At 115 Volt 1 Phase It Will Handle 1.5 Hp, At 230 Volt 1 Phase It Will Handle 2 Hp, And At 230 Volt 3 Phase It Will Handle 3 Hp.)
Preset On Pressure: 20 Psi/ The Contacts Close At This Pressure To Send Power To The Motor/ Pump.
Preset Off Pressure: 40 Psi/ The Contacts Open At This Pressure To Shut Power Off To The Motor/ Pump.
Min Pressure: 20 Psi Can Be Wired 1 Phase Or 3 Phase. 15 Or 230 Volt / At 115 Volt 1 Phase It Will Handle 1.5 Hp, At 230 Volt 1 Phase It Will Handle 2 Hp.
Product Specification:
Type: 20-40 PSI Well Water Pump Pressure Control Switch
Material: Plastic Shell & Cast Iron
Color: Grey Shell
Connection :Female 1/4″ NPT
Max Pressure: 40 Psi
Min Pressure: 20 Psi
