Goulds 1 HP Shallow Well Jet Pump is specifically designed for homes, cottages, and booster services. Its design has an integral shallow well adapter built into the casing, which eliminates the need for a separate shallow well adapter - J10S

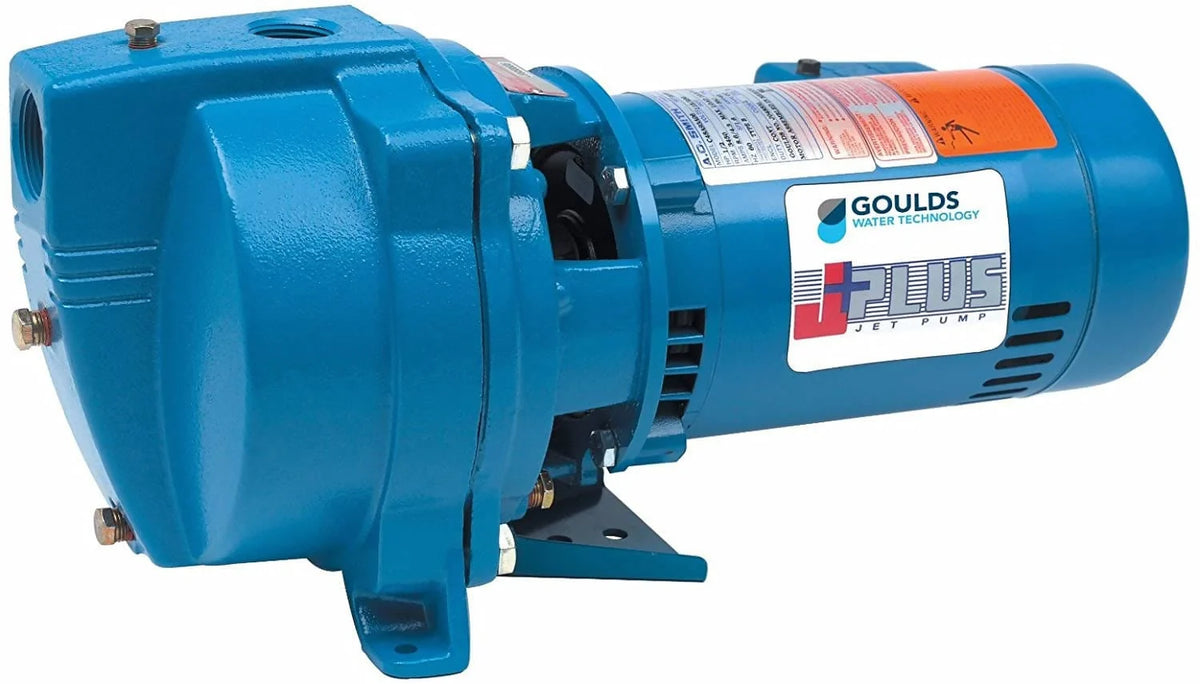

Goulds 1 HP Shallow Well Jet Pump
is specifically designed for homes, cottages, and booster services.  Its design has an integral shallow well adapter built into the casing, which eliminates the need for a separate shallow well adapter - J10S

Description:

The J10S is specifically designed for homes, cottages, and booster services.  Its design has an integral shallow well adapter built into the casing, which eliminates the need for a separate shallow well adapter.

This pump features a back pull-out design, two compartment motor for easy access to wiring, and is corrosion resistant.


Features:

Goulds JS+ Series Shallow Well Jet Pump

• Ideal for use in pumping at depths of 25' or less

Corrosion-Resistant Cast Iron Construction

• Inside & out Electro-coated paint process

1 HP NEMA Standard Motor (115 / 230V)

• Built-In overload protection w/ automatic restart
• Can be run continuously without damage

Built-In Shallow Well Adapter

• Provides a compact design w/o the need for a separate adapter

Bolt-Down Diffuser

• Stainless wear ring for extended performance

F.D.A Compliant Glass Filled Noryl Impeller

• Corrosion and abrasion resistant design

Protected Mechanical Seal

• Retains water in the casing to prevent run-dry occurrences

Includes Factory Pre-Wired 30/50 Pressure Switch

• Allows for reliable automatic operation

Made For Easy Service

• Dual-compartment motor for easier wiring
• Back-pullout design won't disturb piping
• Nozzle clean-out plug in pump case

Specifications:

Pump:
Pipe connections: 1 1⁄4" NPT suction, 1" NPT discharge.
Pressure switch: AS4FX preset (30-50 PSI).

Motor:

• NEMA standard
• 60 Hz.
• 1 HP, 115/230 V capacitor start
• Single phase
• 3500 RPM
• Built-in overload with automatic reset
• Stainless steel shaft
• Rotation: clockwise when viewed from motor end
• Product Dimensions: 18.75 x 9.88 x 8.75 inches

Item Number: J10S
